As a supplier of Block Cutting Machines, I've encountered numerous inquiries regarding the cutting fluids used in these machines. Cutting fluid plays a pivotal role in the operation of block cutting machines, influencing the efficiency, quality, and longevity of the cutting process. In this article, I'll delve into the details of what cutting fluid is, its types, functions, and how to choose the right one for your block cutting machine.
What is Cutting Fluid?
Cutting fluid, also known as coolant or lubricant, is a substance used in machining processes to reduce friction and heat generation between the cutting tool and the workpiece. In the context of block cutting machines, which are designed to cut large blocks of stone, such as granite, marble, and limestone, cutting fluid is essential for achieving smooth, precise cuts and extending the life of the cutting blades.
Types of Cutting Fluids
There are several types of cutting fluids available, each with its own unique properties and applications. The most common types used in block cutting machines include:
Water-Based Cutting Fluids
Water-based cutting fluids are the most widely used type due to their excellent cooling properties, low cost, and environmental friendliness. They consist of a mixture of water and additives, such as emulsifiers, corrosion inhibitors, and biocides. Water-based cutting fluids can be further divided into three categories:
- Soluble Oils: These are oil-in-water emulsions that contain a high percentage of oil (up to 80%). Soluble oils provide good lubrication and cooling, making them suitable for heavy-duty cutting operations.
- Synthetic Fluids: Synthetic cutting fluids are made entirely of synthetic chemicals and do not contain any oil. They offer superior cooling and corrosion protection, as well as excellent resistance to bacteria and fungi. Synthetic fluids are often used in high-precision cutting applications.
- Semi-Synthetic Fluids: Semi-synthetic fluids are a combination of soluble oils and synthetic fluids. They offer a balance of lubrication, cooling, and corrosion protection, making them suitable for a wide range of cutting operations.
Neat Oils
Neat oils, also known as straight oils, are pure petroleum-based or synthetic oils that do not contain any water. They provide excellent lubrication and are ideal for applications where high cutting forces are involved, such as roughing operations. However, neat oils have poor cooling properties and can generate a significant amount of heat, which can lead to tool wear and workpiece damage.
Gas-Based Cutting Fluids
Gas-based cutting fluids, such as compressed air and nitrogen, are used in some applications where water-based or oil-based cutting fluids are not suitable. Gas-based cutting fluids provide excellent cooling and can help to reduce the formation of chips and burrs. However, they have limited lubrication properties and are not suitable for heavy-duty cutting operations.
Functions of Cutting Fluid in Block Cutting Machines
Cutting fluid performs several important functions in block cutting machines, including:
Cooling
One of the primary functions of cutting fluid is to remove heat generated during the cutting process. As the cutting blade comes into contact with the stone block, friction is generated, which can cause the temperature of the blade and the workpiece to rise rapidly. High temperatures can lead to tool wear, workpiece damage, and reduced cutting efficiency. Cutting fluid absorbs and dissipates the heat, keeping the blade and the workpiece cool and preventing overheating.
Lubrication
Cutting fluid also provides lubrication between the cutting blade and the workpiece, reducing friction and wear. By reducing friction, cutting fluid helps to extend the life of the cutting blade and improve the quality of the cut. Lubrication also helps to prevent the blade from sticking to the workpiece, which can cause chipping and breakage.
Chip Removal
During the cutting process, chips are generated as the blade cuts through the stone block. These chips can accumulate on the blade and in the cutting area, causing clogging and reducing cutting efficiency. Cutting fluid helps to flush away the chips, keeping the cutting area clean and preventing chip buildup.
Corrosion Protection
Cutting fluid also provides corrosion protection for the cutting blade and the machine components. Stone blocks often contain minerals and salts that can cause corrosion, especially in the presence of water. Cutting fluid contains corrosion inhibitors that help to prevent rust and corrosion, extending the life of the cutting blade and the machine.
Choosing the Right Cutting Fluid
Choosing the right cutting fluid for your block cutting machine depends on several factors, including the type of stone being cut, the cutting operation, the cutting tool, and the machine specifications. Here are some tips to help you choose the right cutting fluid:
Consider the Type of Stone
Different types of stone have different properties, such as hardness, density, and abrasiveness. Harder stones, such as granite, require a cutting fluid with better lubrication and cooling properties. Softer stones, such as marble, may require a cutting fluid with less lubrication and more cooling.
Evaluate the Cutting Operation
The type of cutting operation, such as roughing or finishing, also affects the choice of cutting fluid. Roughing operations typically require a cutting fluid with better lubrication to reduce tool wear, while finishing operations require a cutting fluid with better cooling to improve the surface finish.
Match the Cutting Tool
The type of cutting tool, such as a diamond blade or a carbide-tipped blade, also influences the choice of cutting fluid. Diamond blades require a cutting fluid with good cooling properties to prevent diamond degradation, while carbide-tipped blades require a cutting fluid with good lubrication to reduce wear.
Follow the Machine Manufacturer's Recommendations
The machine manufacturer's recommendations are an important source of information when choosing a cutting fluid. The manufacturer may specify the type, concentration, and application method of the cutting fluid to ensure optimal performance and longevity of the machine.
Our Block Cutting Machines and Cutting Fluid Compatibility

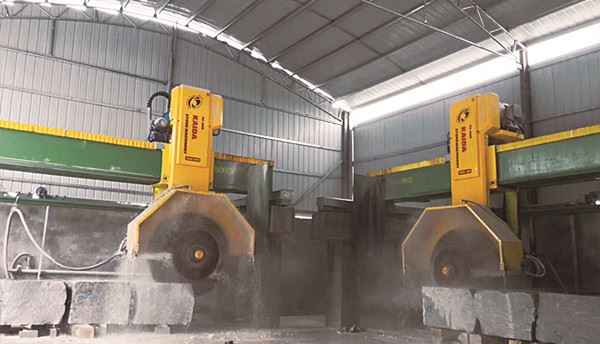

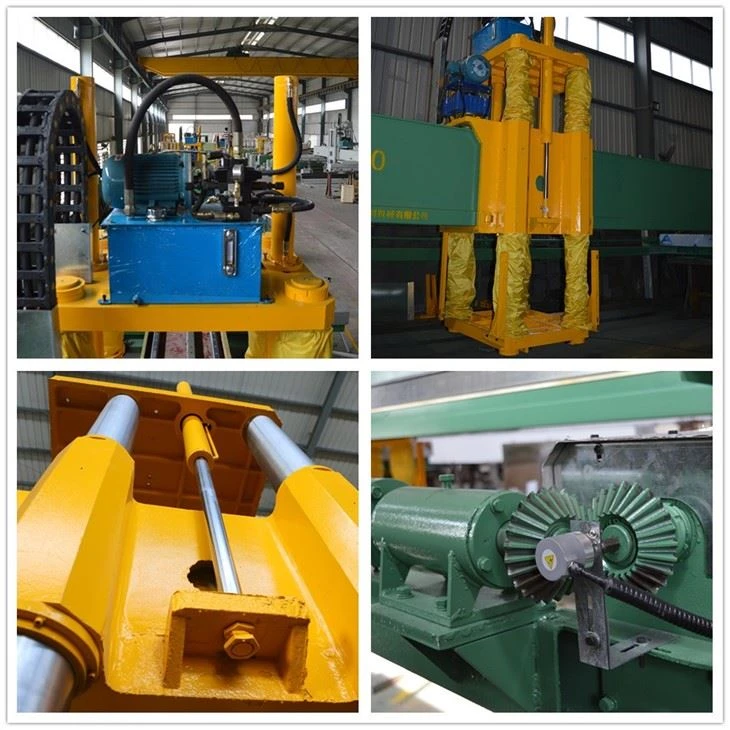

At our company, we offer a wide range of Block Cutting Machine For Nigeria that are designed to work effectively with different types of cutting fluids. Our Multi Blade Stone Block Cutter and Multi Blades Granite Block Cutting Machine are equipped with advanced cooling and lubrication systems that ensure efficient and precise cutting operations.
When using our block cutting machines, we recommend choosing a high-quality cutting fluid that is compatible with the machine and the type of stone being cut. Our technical support team can provide you with detailed information and guidance on choosing the right cutting fluid for your specific application.
Contact Us for Procurement and Consultation
If you're interested in purchasing a block cutting machine or have any questions about cutting fluids, please don't hesitate to contact us. Our experienced sales team is ready to assist you with selecting the right machine for your needs and providing you with comprehensive after-sales support.
References
- "Cutting Fluids and Coolants Handbook" by Kalpakjian, S. and Schmid, S.
- "Machining Technology: An Introduction to Manufacturing Processes" by Groover, M.P.
- "Modern Machining Technology" by McGeough, J.A.
