CNC Diamond Wire Saw Machine Cutting Special Shape

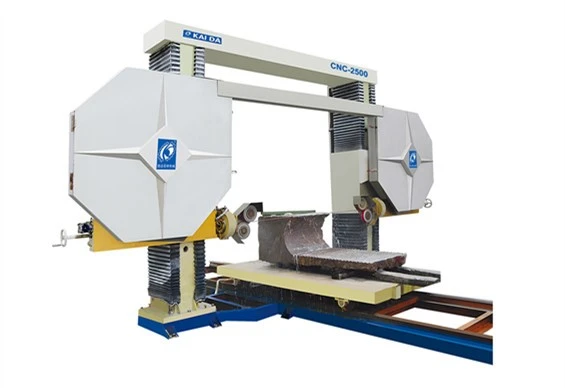

CNC Diamond Wire Saw Machine
CNC Diamond Wire Saw Machine utilizes computer numerical control technology with 5-axis linkage capability, enabling it to process a variety of complex shapes in marble and granite materials. These include arc plates, cylinders, Roman columns, numbers, letters, and Chinese characters of different specifications. The CNC Diamond Wire Saw Machine ensures high processing accuracy and delivers excellent quality.
This equipment features a robust load-bearing structure, supported by two highly stable columns. Each column is equipped with four tracks, and the balance can be adjusted via rollers, ensuring low friction and high precision.
The top frame is lifted synchronously through a steering mechanism, while the screw rod is fitted with dual nuts to enhance lifting accuracy.
The cantilever section adjusts the distance between the guide wheels on both sides using a combination of a screw rod and a polished rod. The rotation of the two pairs of guide wheels is always controlled by CNC, and their rotation angles are managed by a reduction box to align with the rope cutting direction.
The worktable moves along national standard tracks powered by a screw rod and a cycloidal pinwheel Slow down motor.
It includes an automatic alarm system for broken ropes, preventing them from twisting into the interior of the machine, thus ensuring high safety performance.
A unique rope tensioning device is incorporated, featuring two rope pulleys with a diameter of 1600mm. One pulley can slide via a roller, and the oil tank regulates the rope tension.

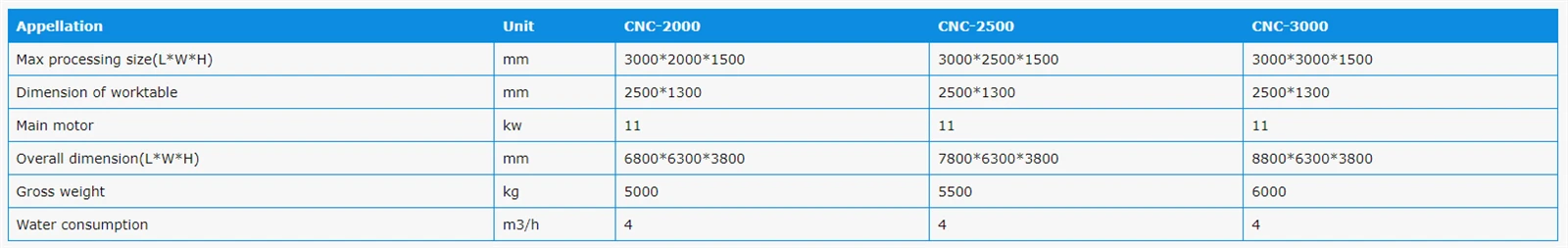

technical data
This Diamond Rope CNC Cutting Machine features a cutting-edge system for automatic wire break detection, prioritizing safety above all else. It guarantees that any issues with the wires are swiftly detected and resolved to avoid possible accidents.
The CNC Diamond Wire Saw Machine incorporates an ergonomically designed and straightforward control panel, ensuring effortless operation for users of all skill levels. This design centered around user experience streamlines the cutting procedure and boosts overall functionality.
