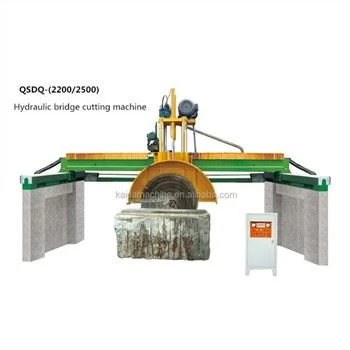

QSQD-2200/2500/2800 block cutting machine adopts a long-span bridge structure. The cross beams and side beams are all oil-immersed guide rails. The machine automatically slices and moves through the screw drive to realize the rapid rise of the blade or the deceleration of the blade for slicing (special - the motor can also be customized Frequency). There are guards on the cross and side beams that limit them beyond your requirements. Blocks can be placed directly on the ground, saving work and maintenance costs.

Send Inquiry

Product Introduction

Products Description

The Bridge Type Hydraulic Block Cutter can be equipped with an optional frequency converter to control the left and right movement and adjust the cutting speed according to the stone material. The saw blade is lifted and lowered using a hydraulic system, and the front and rear slicing is driven by a high-precision screw nut. It is automatically sliced according to system parameters. The main components are made of imported high-quality materials; the block can be placed directly on the ground, saving workbench and low maintenance costs; The whole machine has the characteristics of high cutting efficiency, high cutting precision, smooth plate after cutting, high stability, and easy operation. It is suitable for cutting high-value granite and marble blocks.

Model NO.	QSDQ-2200/2500/2800	Main Motor Power	55/75/90kw(optional)
Cutting Ability	High Speed	Dimension	750040007000mm
Control	PLC	Weight	11500/12000/12500kg
Certification	ISO, CE	Transport Package	Nude
Max. Blade Diameter	2200/2500/2800mm	Specification	750040007000mm
Max. Cutting Length	3500/3200/2800mm	Trademark	KAIDA
Max. Cutting Height	950/1050/1250mm	Origin	China
Max. Lifting Stroke	1400/1550/1700mm	HS Code	8464101000
Water Consumption	12/15/18m³/h	Production Capacity	1000 sets/year

hydraulic system

The device incorporates a precision hydraulic lifting system, featuring four chrome-plated guide columns with minimal clearance. Each guide bush is internally equipped with multiple seals, effectively ensuring waterproof, dustproof, and oil-leak-resistant performance.

PLC programmable control

The Stone Block Bridge Saw is governed by an advanced PLC system that ensures precise control and customization of the cutting process. This user-friendly interface allows for real-time monitoring and easy adjustments, enhancing both the machine's performance and safety standards. The PLC system is integral to the saw's reliability and efficiency in professional stone cutting applications.

Precision Control

The Stone Block Bridge Saw features a high-precision rotary encoder for accurate slicing and a variable frequency drive (VFD) for controlled lateral movement. This allows for customized cutting speeds tailored to different stone materials, ensuring both precision and adaptability in every cut.

Q: How can you guarantee the production quality ?

A: We have strictly quality control system in our production process. All products must be double checked during every manufacturing process. Requirement of customers and quality of products will be full guaranteed.

Q: Dose this machine pass CE certificate?

A: Yes, this machine passed European CE certificate and meet safety standard.

Q: Are you manufacturer or trading company?

A: We are manufacturer that has our own factory, technical Dept., marketing and after sale service teams.

Q: When will you ship my order?

A: For regular machines, we have standard models in stock, so we can ship it as soon as we receive your paymentIf we do not have it in stock, normally it takes 15-20 days to produce after receiving deposit, it can benegotiated if customer need machines urgently.

Q: What language does your machine have?

A: All machines have both Chinese and English language, We can also add Russian, Saudi, Polish, Koreanetc. according to your requirement.

If you have another questions,please feel free to contact us.
