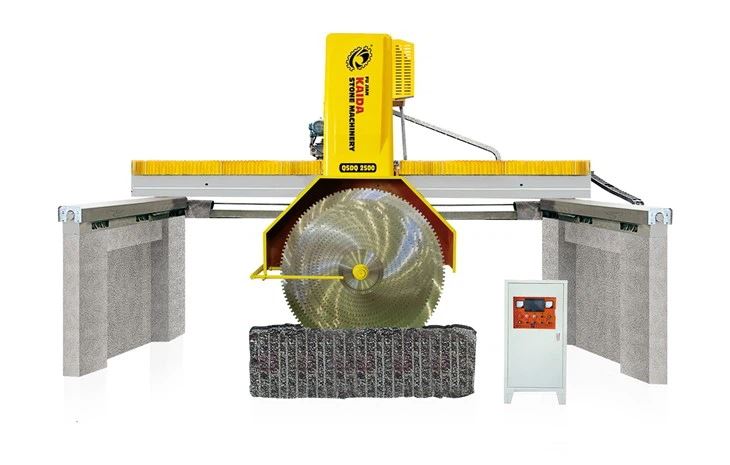

2026 Hydraulic Block Cutting Machine

Heavy-Duty Stone Block Cutting Solution for Granite & Marble

The 2026 Hydraulic Block Cutting Machine is built for efficient and precise cutting of granite, marble, and other natural stone blocks. Its reinforced mechanical structure, reliable hydraulic system, and smart automatic control make it ideal for continuous industrial use.

With a 7500 mm cross beam, robust Ø165 mm guide columns, and high-powered transmission components, this block cutting machine handles heavy-duty operations while maintaining high accuracy. It is particularly suited for stone processing plants in Africa, offering durability, easy maintenance, and stable performance under demanding conditions.

Heavy-duty reinforced structure for ultra-stable cutting

Advanced hydraulic system with Taiwan brand components

Full automation control via PLC + HMI interface

High-precision guide system with solid round steel columns

Compatible with international and mainstream electrical brands

Designed for long-term, high-intensity stone block processing

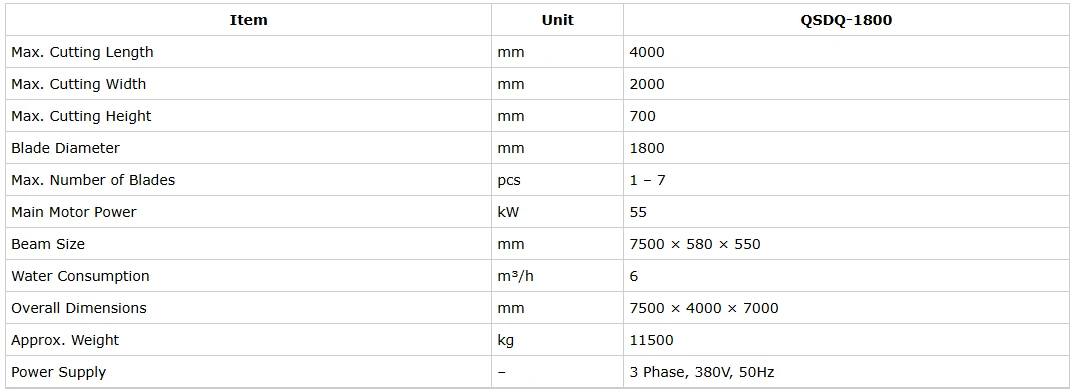

Technical Specifications

1. Disc Up / Down System

High-strength cast-iron dual-slider design for smooth and precise vertical movement. Twin screws with adjustable limits ensure stable operation.

2. Right / Left Traveling System

Heavy cast-iron cross beam and carriage driven by rack-and-pinion mechanism with reducer and motor, delivering accurate lateral travel.

3. Blade Spindle Unit

Belt-driven cast-iron spindle assembly for reliable power. Optional SIEMENS motor and SKF bearings for improved accuracy and lifespan.

4. Forward / Backward Feed System

Cast-iron beams, sliders, and synchronized screws ensure stable longitudinal motion and precise cutting alignment.

5. Optional Working Table (By Order)

Cast-iron table with screw drive and idler wheels offers vibration damping, low noise, and convenient block positioning.

6. Electrical Control System

PLC and HMI interface allow real-time monitoring, parameter adjustment, and fault diagnosis. Electrical components can be chosen from Schneider, OMRON, Weidmuller, or reliable domestic brands like Easy-Drive.

This hydraulic block cutting machine uses an imported PLC to enable fully automated cutting cycles. Reliable logic control and real-time monitoring improve productivity while ensuring operator safety and machine stability, even in challenging African quarry conditions.

"The machine works steadily with large granite blocks. Very reliable for our quarry operations."
- Quarry Operator, Africa

"Strong structure, easy operation, and low maintenance cost. Ideal for continuous production."
- Stone Factory, Southeast Asia

"Excellent performance with SIEMENS motor and PLC control. Maintenance is simple and affordable."
- Quarry Operator, Africa

Q1: What types of stone can this block cutting machine process?

A: Granite, marble, limestone, quartz, and similar natural stones commonly used in construction and industrial applications.

Q2: Does the machine support automatic operation?

A: Yes, PLC and HMI control enable fully automated cutting cycles, real-time monitoring, and flexible parameter adjustments.

Q3: Can electrical components be customized?

A: Yes. Customers may select international brands such as Schneider, OMRON, Weidmuller or reliable domestic brands to balance performance and cost.

Q4: Is a working table included?

A: The working table is optional and can be customized according to block size and production requirements.

Q5: What kind of installation and after-sales support is provided?

A: We provide installation guidance, operator training, commissioning support, and ongoing after-sales service to ensure reliable long-term operation.

In 2026, Kaida Stone Machinery focuses on delivering durable and efficient block cutting machines for industrial stone processors worldwide.

We enhance structural stability, control systems, and manufacturing quality to provide machines capable of high-precision cutting under heavy workloads. Our solutions are designed to thrive in Africa and other high-demand markets where reliability and ease of maintenance are essential.

From machine selection to installation and after-sales service, Kaida is committed to supporting customers with practical, long-term solutions.

Kaida Stone Machinery - strong machines built for real working conditions.
