Block Cutting Machine For Algeria

Block Cutting Machine for Algeria

Market Background

Algeria, one of North Africa's leading producers of marble, granite, and limestone, has witnessed remarkable growth in its stone processing sector over the past decade. Driven by booming infrastructure projects, new housing developments, and increased investment in industrial zones, the local demand for high-performance stone machinery has grown rapidly. Many Algerian factories are now upgrading from traditional manual cutters to fully automatic, high-precision block cutting machines that ensure better efficiency and accuracy.

To meet this growing need, Kaida's QSDQ Series Hydraulic Block Cutting Machine provides a powerful and reliable solution designed for large-scale stone block cutting with precision, durability, and safety in mind.

Product Overview

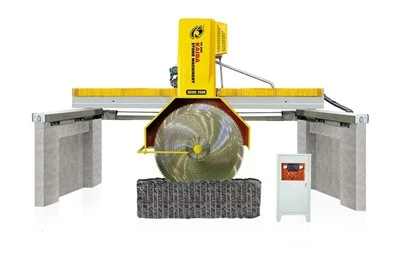

The QSDQ-1800 Block Cutting Machine is engineered with a heavy-duty cross beam measuring 7500mm × 580mm × 550mm, and a solid 165mm guide column, giving the machine exceptional rigidity and cutting stability. Its reinforced structure and cast-iron components ensure long service life and high precision, even under continuous operation.

The hydraulic system, sourced from Taiwan's reputable brand, provides smooth and reliable lifting performance. Electrical components are available from internationally recognized brands such as Schneider (Germany), Omron (Japan), and Weidmüller (Germany), ensuring safe and stable control during operation.

The machine's PLC-based automation system enables full process control - from parameter setting and motion coordination to fault diagnostics. The operator can easily adjust cutting parameters, monitor machine status in real time, and ensure production safety through the user-friendly Human-Machine Interface (HMI).

Technical Advantages

Heavy-Duty Construction
All main structures, including the disc lifting unit, beam movement system, and optional working table, are made from high-strength cast iron. This provides superior vibration absorption, corrosion resistance, and cutting precision.

Precision Motion Control

Disc lifting system uses a double-screw synchronized mechanism with adjustable top and bottom limits.

Beam movement adopts rack-and-pinion drive with a motor reducer for stable left-right travel.

Forward/backward feed system operates via synchronized screws and high-rigidity guides.

Reliable Power System
Equipped with a 55 kW main motor, capable of driving 1–7 blades (up to Ø1800mm), achieving efficient multi-slice block cutting.

Optional Rotary Table
The optional table, built from cast iron, supports forward/backward motion and can rotate for angled cutting, providing flexibility for different block dimensions and shapes.

Intelligent Electric Control
The control cabinet houses all electrical systems, while the control panel allows centralized operation of all movements, ensuring safety and convenience.

Why Choose Kaida for Algeria

In Algeria, many quarries and factories are transitioning toward higher automation and production efficiency. Kaida's block cutting machine meets these evolving needs by offering:

Stable performance in harsh conditions such as dust and humidity.

High automation, reducing manual labor and production risks.

Energy-efficient and low-maintenance design, minimizing operating costs.

Precision cutting, ideal for both marble and granite applications.

With its advanced hydraulic system, intelligent control, and robust construction, Kaida's Block Cutting Machine helps Algerian stone factories improve output quality and productivity - making it a preferred choice in the country's expanding stone processing market.
