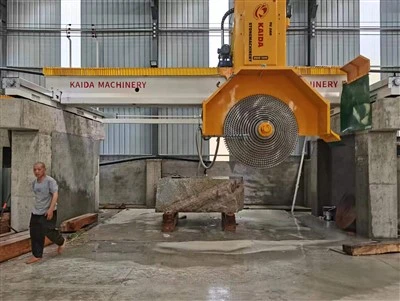

Bridge Type Block Cutting Machine
QSQD-2200/2500/2800 block cutting machine adopts a long-span bridge structure. The cross beams and side beams are all oil-immersed guide rails. The machine automatically slices and moves through the screw drive to realize the rapid rise of the blade or the deceleration of the blade for slicing (special - the motor can also be customized Frequency). There are guards on the cross and side beams that limit them beyond your requirements. Blocks can be placed directly on the ground, saving work and maintenance costs. The machine has the characteristics of high precision, stable performance, high automatic processing output, convenient installation and simple maintenance, and is suitable for the development of the global stone industry.
Send Inquiry
Product Introduction
Products Description
Introducing our state-of-the-art Bridge Type Block Cutting Machine, a revolutionary hydraulic cutting equipment designed for the precise and efficient processing of various stone materials. This machine is the epitome of innovation and reliability, ensuring that your stone cutting operations are not only accurate but also safe and user-friendly.
Products details
Technical product specifications can be found at the end of the page.
our company
other products
Firstly, we support the delivery of engineers to overseas customer factories for on-site installation and training.
Secondly, better and lower cost after-sale service could be provided thanks to our worldwide network.
Thirdly, we provide advisory machinery, debugging, maintenance and fault handling package of services.
Fourthly, we are manufacturer, you could get best price without paying any commission.
If you have another questions,please feel free to contact us.
basic info
| Model NO. | QSDQ-2200/2500/2800 | Main Motor Power | 55/75/90kw(optional) |
| Cutting Ability | High Speed | Dimension | 7500*4000*7000mm |
| Control | PLC | Weight | 11500/12000/12500kg |
| Certification | ISO, CE | Transport Package | Nude |
| Max. Blade Diameter | 2200/2500/2800mm | Specification | 7500*4000*7000mm |
| Max. Cutting Length | 3500/3200/2800mm | Trademark | KAIDA |
| Max. Cutting Height | 950/1050/1250mm | Origin | China |
| Max. Lifting Stroke | 1400/1550/1700mm | HS Code | 8464101000 |
| Water Consumption | 12/15/18m³/h | Production Capacity | 1000 sets/year |
