Hydraulic Cutting Tool

QSQD-2200/2500/2800 block cutting machine adopts a long-span bridge structure. The cross beams and side beams are all oil-immersed guide rails. The machine automatically slices and moves through the screw drive to realize the rapid rise of the blade or the deceleration of the blade for slicing (special - the motor can also be customized Frequency). There are guards on the cross and side beams that limit them beyond your requirements. Blocks can be placed directly on the ground, saving work and maintenance costs. The machine has the characteristics of high precision, stable performance, high automatic processing output, convenient installation and simple maintenance, and is suitable for the development of the global stone industry.

Send Inquiry

Product Introduction

Product Introduction

Hydraulic Bridge block cutting machine is a large board that cuts stone material into the specified thickness quickly and accurately according to requirements.
The bridge type stone machine is suitable for both granite and marble. It is convenient to replace the saw blade, has large processing specifications, flexible adjustment and processing thickness. It is widely used for large-scale block cutting and profiled blank material cutting.

Basic Info.

Model NO.	QSDQ-2200/2500/2800	Main Motor Power	55/75/90kw(optional)
Cutting Ability	High Speed	Dimension	750040007000mm

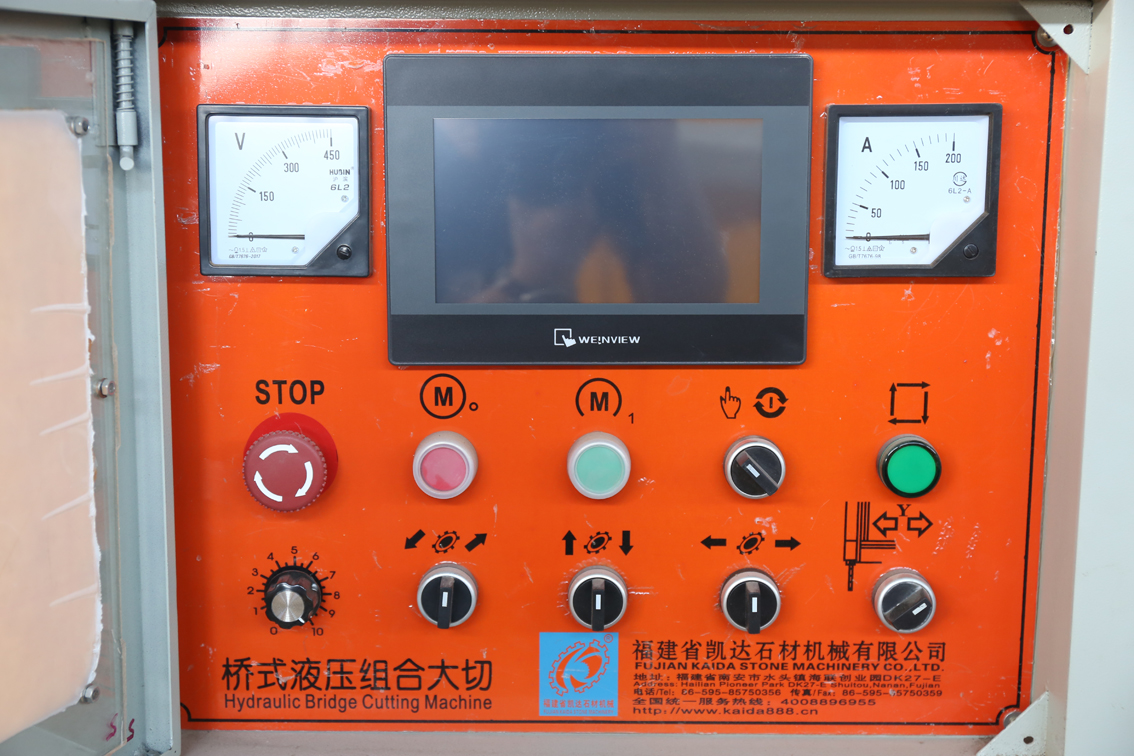

Control	PLC	Weight	11500/12000/12500kg
Certification	ISO, CE	Transport Package	Nude
Max. Blade Diameter	2200/2500/2800mm	Specification	750040007000mm
Max. Cutting Length	3500/3200/2800mm	Trademark	KAIDA
Max. Cutting Height	950/1050/1250mm	Origin	China
Max. Lifting Stroke	1400/1550/1700mm	HS Code	8464101000
Water Consumption	12/15/18m³/h	Production Capacity	1000 sets/year
