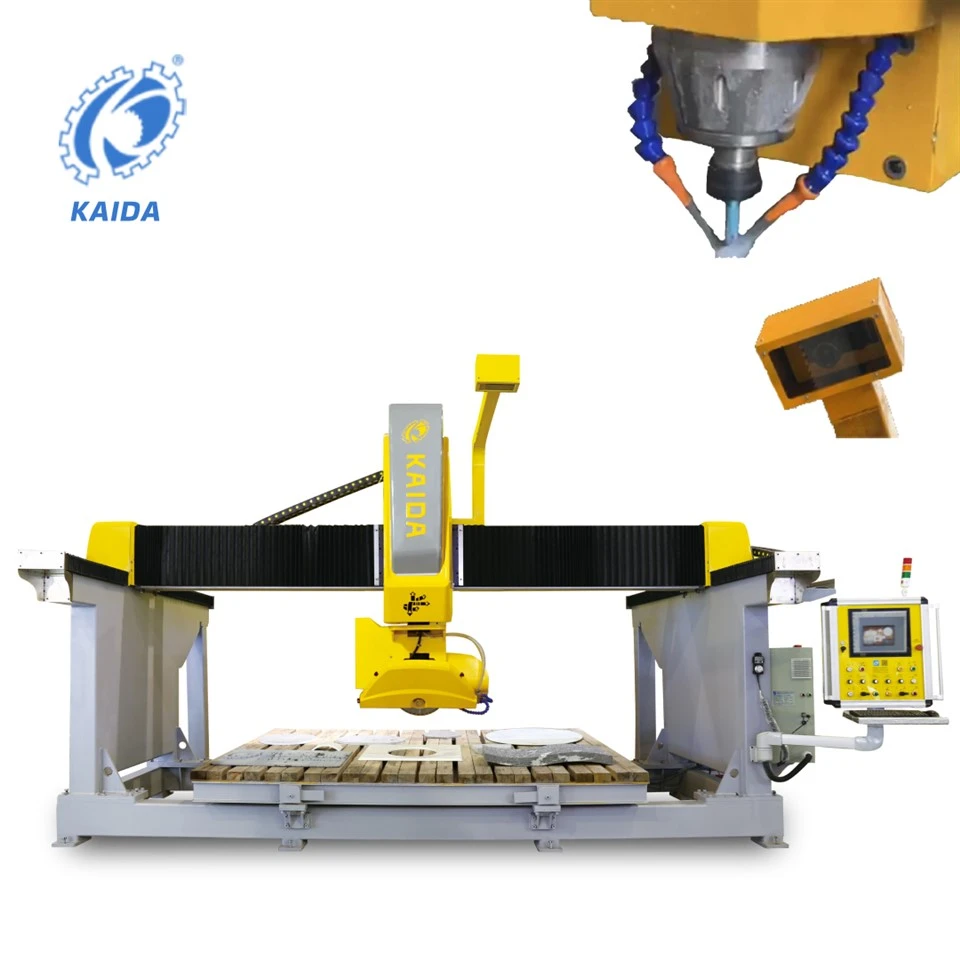

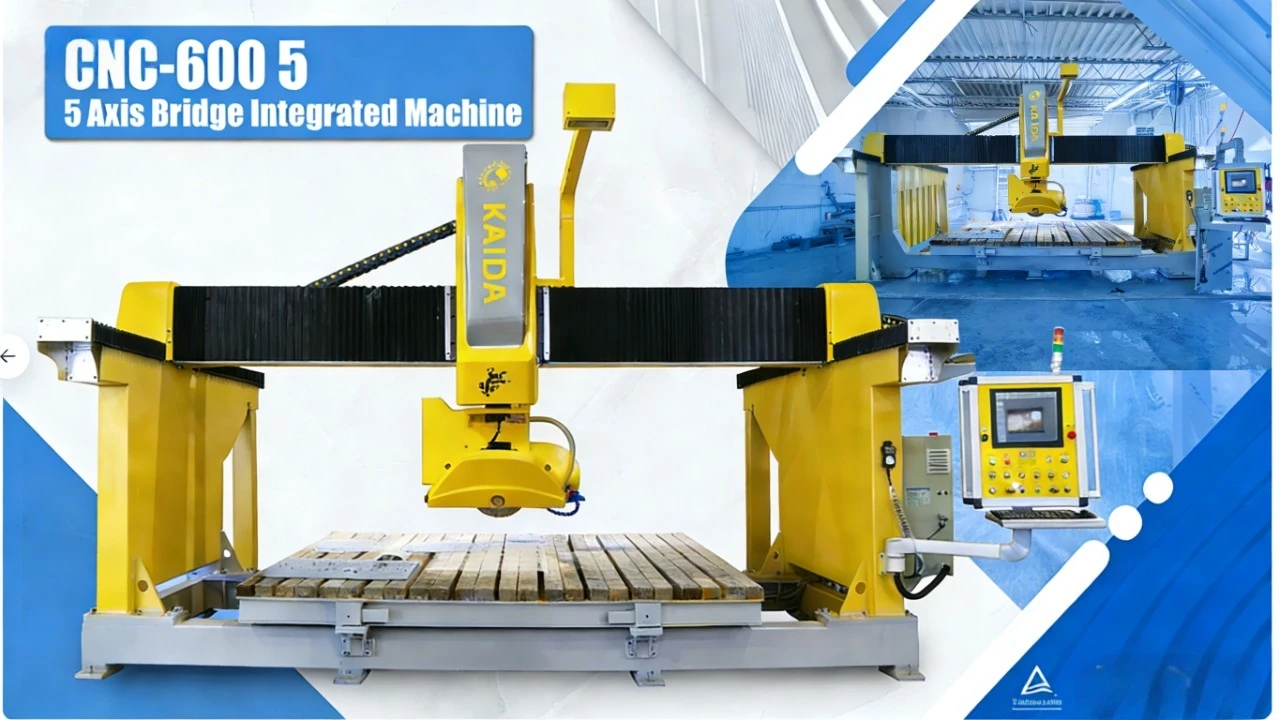

CNC-600 Infrared 5-Axis Bridge Saw
- Professional CNC system supporting simultaneous X/Y/Z linear and A/C rotation movement.
- Effortlessly execute complex multi-angle and curved surface machining for high-end custom stone pieces.
- Intuitive graphical interface for simplified programming and rapid batch production.
- High-resolution infrared marking for instant tool alignment and slab positioning.

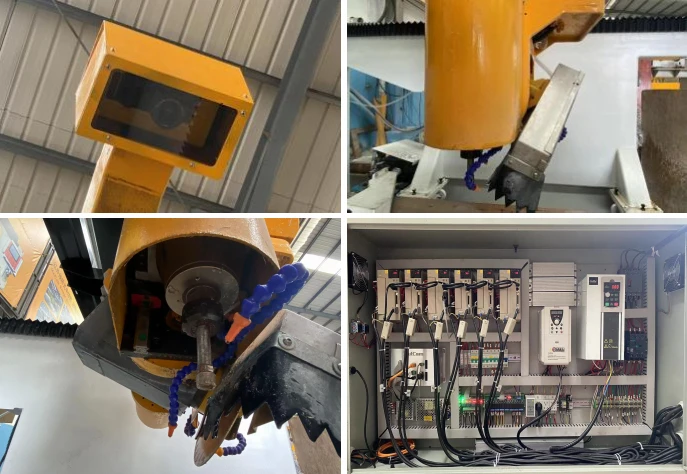

- Integrated HD industrial camera for real-time contour capture, minimizing human error.
- Optimized for large-format slabs and intricate irregular shapes.
- Heavy-duty imported ball screws combined with premium linear guides for ultra-smooth motion.
- Oil-immersed, dust-proof rails with an automatic lubrication system to eliminate wear.
- Superior accuracy retention over years of high-intensity operation.
- Hydraulic four-pillar lifting system and wide-span bridge structure for maximum rigidity.
- Heat-treated (annealed) machine bed to eliminate internal stress and prevent deformation.
- Heavy-load capacity specifically designed for industrial-scale stone manufacturing.
| Technical Parameter | Specifications | Unit |
| Working Range & Travel | ||
| X-Axis Travel (Longitudinal) | 3400 | mm |
| Y-Axis Travel (Transverse) | 2200 | mm |
| Z-Axis Travel (Vertical) | 500 | mm |
| A-Axis Rotation (Blade Tilt) | 0° - 90° (Automatic) | deg |
| C-Axis Rotation (Head Swivel) | ±361° | deg |
| Max. Cutting Depth | 0 - 180 | mm |
| General Performance | ||
| Rapid Feed Rate (Max Speed) | 25 | m/min |
| Spindle Motor Power | 15 - 22 (Optional) | kw |
| Spindle Rotation Speed | 0 - 4000 | rpm |
| Compatible Blade Diameter | Ø350 - Ø600 | mm |
| Worktable Dimensions | 3200 × 2000 | mm |
| Worktable Tilting Angle | 0° - 85° | deg |
| Physical & Power Properties | ||
| Total Installed Power | ≈ 33 | kw |
| Total Machine Weight | ≈ 7000 | kg |
| Overall Dimensions (L×W×H) | 6000 × 3300 × 5000 | mm |
| Smart Integrated Features | ||
| Industrial On-board Camera | Included | Standard |
| Automatic Blade Diameter Measurement | Included | Standard |

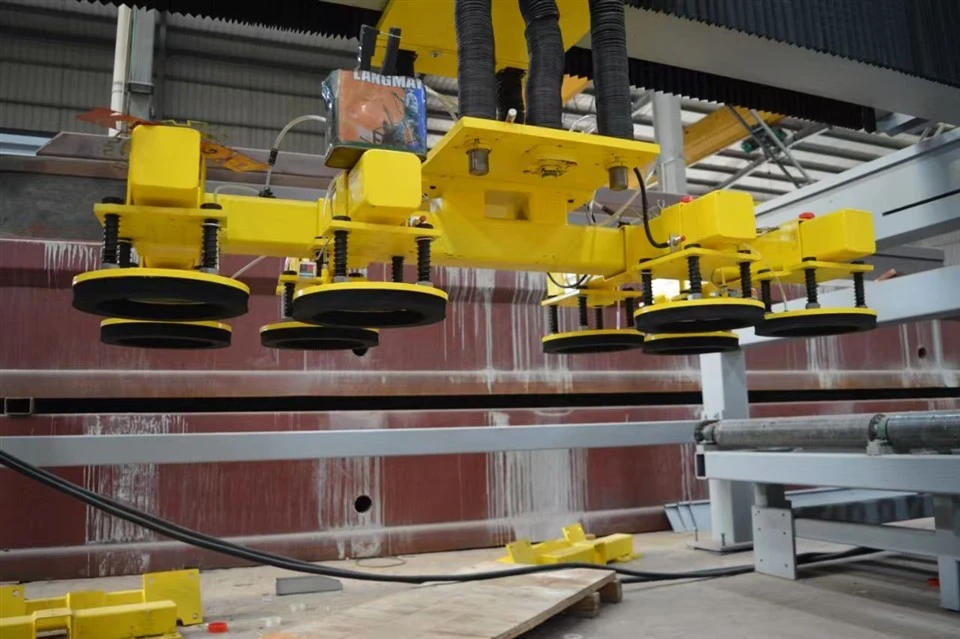

| Vacuum Suction Cup System | Optional | Standard |
| Milling & Profiling Capability | Optional | Standard |
Frequently Asked Questions
Everything you need to know about the CNC-600 5-Axis Bridge Saw
What materials can the CNC-600 process?
The CNC-600 is a versatile powerhouse designed for a wide range of materials, including natural granite, marble, quartzite, and luxury sintered stones (porcelain). Its variable spindle speed (0-4000 rpm) allows you to adjust the cutting parameters perfectly for both hard and fragile materials.
How does the 5-axis system improve production compared to 3-axis saws?

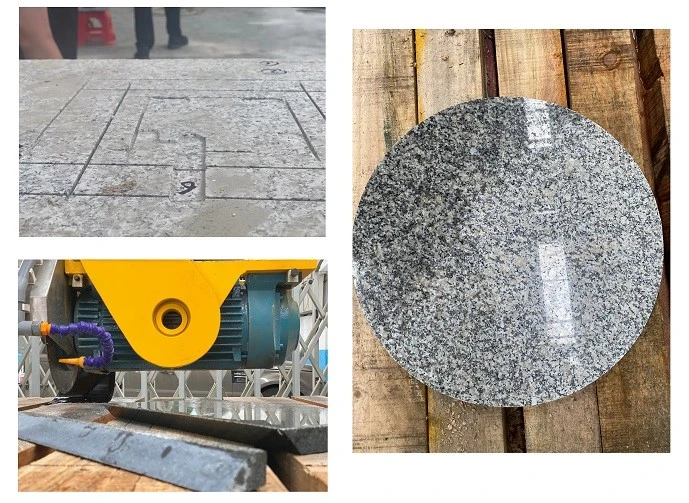

Unlike traditional saws, the 5-axis linkage allows for simultaneous rotation of the head (C-axis) and tilting of the blade (A-axis). This means you can perform complex mitering, circular cutting, sink hole cutouts, and 3D profiling (like curved moldings or textured panels) in a single setup without moving the slab.
How do you ensure long-term accuracy?
Accuracy is maintained through our "Triple-Guaranteed" system: 1. **Magnetic Scale Feedback:** Provides a closed-loop system to monitor real-time position. 2. **Oil-Immersed Rails:** Protects high-precision components from stone dust and water. 3. **Annealed Machine Bed:** The steel frame undergoes heat treatment to ensure it never deforms under heavy loads or temperature changes.
Is the software difficult to operate?
Not at all. The CNC-600 features a user-friendly graphical interface. It supports standard G-code and is compatible with major stone CAM software like Alphacam or Taglio. Additionally, the on-board camera allows operators to position cuts visually on the screen, making it easy even for those new to CNC technology.
What kind of maintenance is required?
The machine is designed for low maintenance. It includes an automatic lubrication system for the guide rails and screws. Regular maintenance primarily involves checking water filtration, cleaning the infrared sensors, and periodic inspection of the vacuum suction cups.
Do you provide international technical support?
Yes. Kaida offers comprehensive support including remote diagnostics via the internet, video installation guides, and a dedicated team of English-speaking technicians. We also maintain a stock of wearing parts for fast global shipping.
