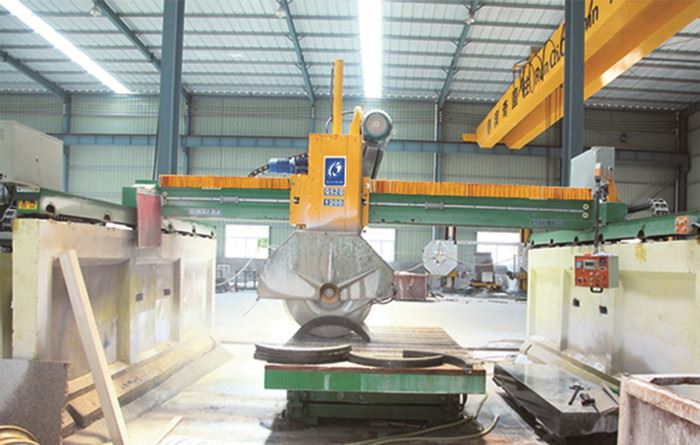

35_

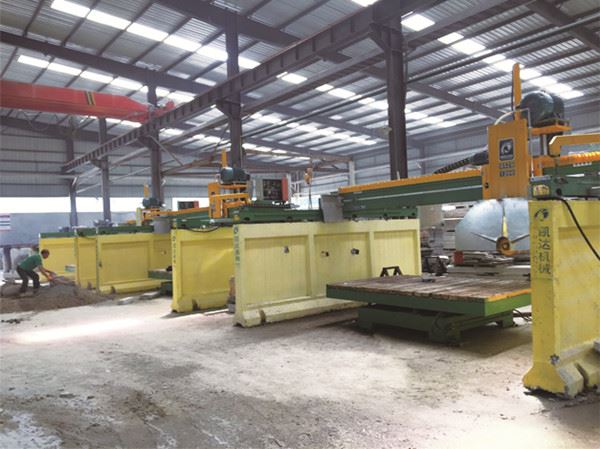

36_
Kaida Bridge Saw Cutting For Granit Or Marble
Kaida Bridge Saw Cutting For Granit Or Marble

Kaida Bridge Saw Cutting For Granit Or Marble

Name: China Kaida Bridge Saw Cutting For Granit Or Marble Manufacturers, Suppliers, Factory - Customized Kaida Bridge Saw Cutting For Granit Or Marble Wholesale - Kaida
Brand: KAIDA
SKU: 92471437

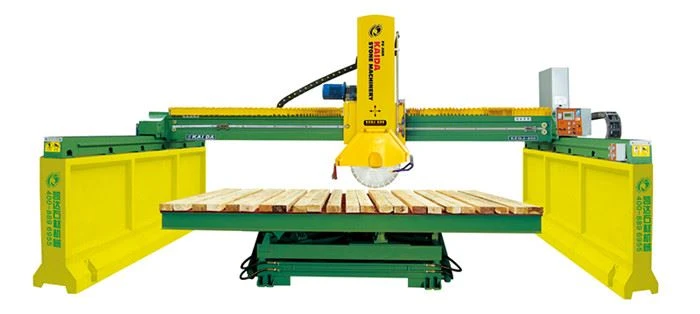

The SZQJ Infrared Bridge Cutting Machine is a fully automatic stone cutting machine designed for marble, granite, quartz, and artificial stone slabs. Featuring infrared positioning, PLC control, magnetic scale guidance, and a tilting and rotating worktable, it delivers precise and efficient slab cutting. Its integrated structure requires no concrete foundation and allows convenient transportation, installation, and self-commissioning.

Send Inquiry

Product Introduction

Product Description

The infrared Bridge cutting machine is integrated structure, no need to build concrete foundation. this machine is mainly used for cutting and processing marble slabs, granite slabs, artificial stone slabs, quartz stone slabs. it has following advantages: (1) convenient to transport and install(can be loaded in 20 GP container) (2) the user can install and debug this machine by self. After completed the installation,can keep the accuracy same as before delivery. especially suitable for customers and traders who want to save the fee of installation.

微信图片_20181024132146

The machine construction

The infrared four-guide pillars cutting machine is composed of the Crossbeam, longitudinal rail boxes, conductors, lifting cylinders, side beams and cement foundation.

Using laser instrument, Italy imported magnetic scale, microcomputer PLC. The machine is full automation and easy to operate, the work efficiency also improved. Total 4 type machine 400 600 700 800. Tow functions of the conventional and chamfered.

The worktable can be rotated 45 degrees 90 degrees and 360 degrees, a variety of rotation methods.

The main motor power is 15KW, 18.5KW, 22KW. available as an option. It meets the cutting requirements of large-size plates on the market.

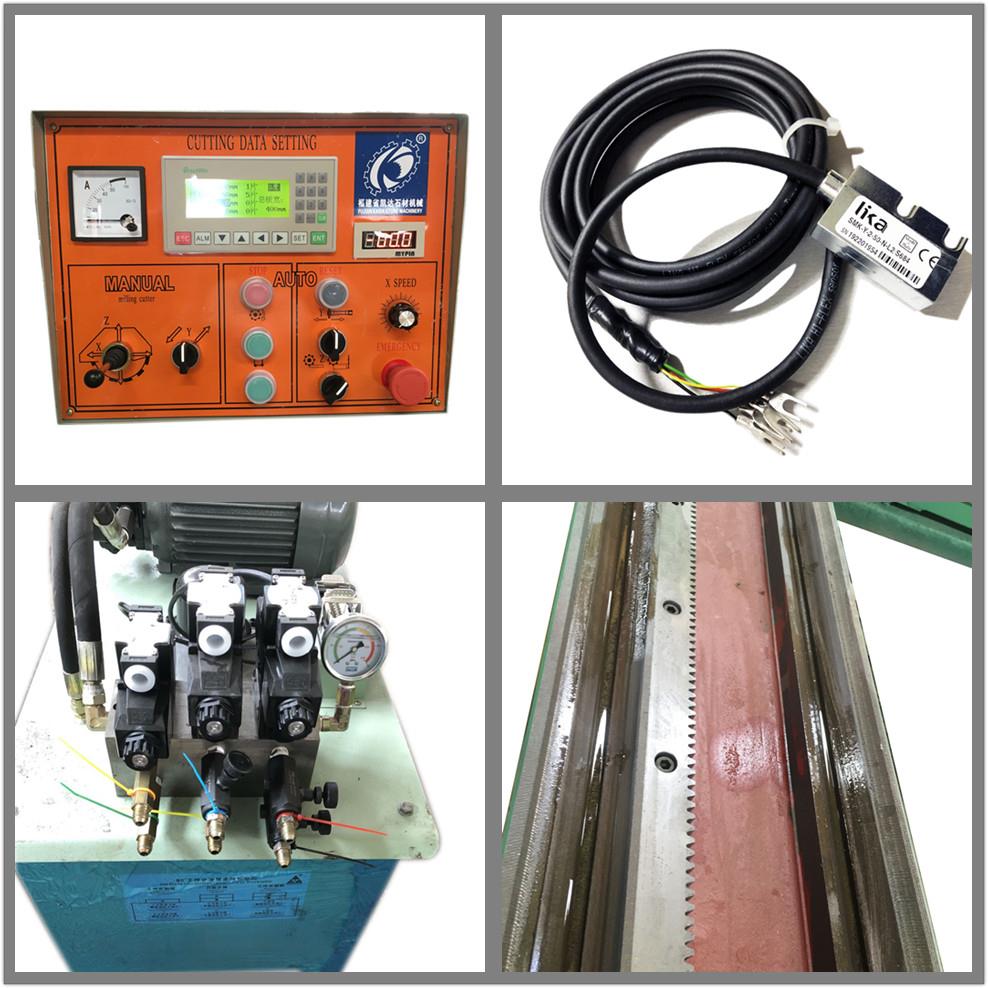

桥切细节

桥切切割

Product feature

1,crossbeam is made of cast iron, it will be more durable and stable.

2,Worktable can rotate 0-360°and locate at every 45 degree,can tilt 0°-83°

3,Hydraulic system is used in the worktable tilting and rotating.

4,AC contactor ,inverter,breaker,touch screen and PLC adopt Schneider brand. human-machine interface is easily operated and fully automatic processing as operator entered parameters

5,Equipped with infrared ray to exactly locate slabs

6,The forward and backward movement of crossbeam is equipped with magnetic grid ruler to ensure high processing precision.

7,This machine has an automatic lubrication system. Can set time to oil for the blade lifting parts.

Product Data

Appellation	Unit	SZQJ-400	SZQJ-600	SZQJ-800
Max. processing size (L×W×H)	mm	3200X3200X70	3200x3200x220	3200x3200x280
Diameter of blade	mm	φ350-φ400	φ400-φ700	φ400-φ800
Dimensions of worktable (L×W)	mm	3200x2000	3200x2000	3200x2000
Worktable tilting degree	N°	0-85	0-85	0-85
Worktable rotating degree	N°	90/360	90/360	90/360
Main motor power	kw	15	15	18.5
Water consumption	M³/h	4	4	4
Overall dimensions (L×W×H)	kg	6000x5000x2800	6000x5000x2800	6000x5000x2800

伺服桥切机1

FAQS:

1) Payment:
70% of total value (down payment)for placing an order, we start to produce the machine→30% (balance payment)before loading the machine to container
2) Delivery time:
The wire saw machine can be shipped within 15 weekdays when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. Technical Support 24 hour on line.
