New Granite Edge Polishing Machine
Product Overview

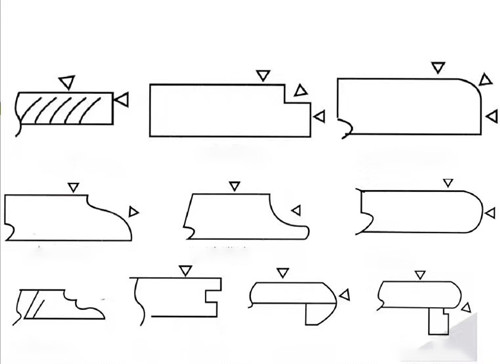

Engineered for precision and high-volume production, our Granite Edge Polishing Machine (Model: XTJ-300-14C) represents the pinnacle of automated stone fabrication. This fully automatic liners processing machine is designed to execute a comprehensive range of edge profiling tasks in a single pass. From rough grinding and fine polishing to complex special-shaped edges, stair anti-skid grooves, and flat bottom edges, this equipment delivers superior efficiency and flawless finishing.
By automating the entire workflow-from R round belt side throwing to linear shaping and slot pulling-the XTJ-300-14C ensures that the brightness of the processed edge consistently exceeds the original board surface. With a maximum feeding speed of 5m/min, this machinery effectively replaces the workload of 15 skilled workers, eliminating human error and process defects while significantly reducing labor costs.
Core Features & Functional Advantages
Intelligent Motor Configuration
The machine features a robust and strategically laid-out motor system to handle diverse processing needs:
Forming Motors: No. 1 and No. 2 forming motors operate at 5.5 kW each for heavy-duty initial shaping.
Polishing Motors: No. 3 and No. 4 polishing motors are rated at 4 kW, ensuring consistent surface refinement.
Transitional Motors: No. 5 motor (3 kW) is laid flat to bridge forming and final polishing stages.
Versatile Vertical Motor: The 3 kW No. 6 vertical motor offers dual functionality. It can be moved to the smooth plate surface to process stair anti-skid grooves, or equipped with a water mill to move to the bottom of the stone for flat edge processing and wire removal.
Fine Polishing Motors: No. 7 and No. 8 fine polishing motors (3 kW, laid flat) guarantee a mirror-like finish.
Advanced Mechanical Structure
Independent Single Guide Column Base: Our independently developed motor base utilizes a single guide column structure. Once the grinding wheel motor position is adjusted, it locks securely in place, supporting grinding wheels up to 180mm in diameter.
Real-Time Wear Compensation: To maintain continuous high-quality output without downtime, the machine features an electrical adjustment system for abrasive lifting during operation, automatically compensating for grinding wheel wear and consumption.

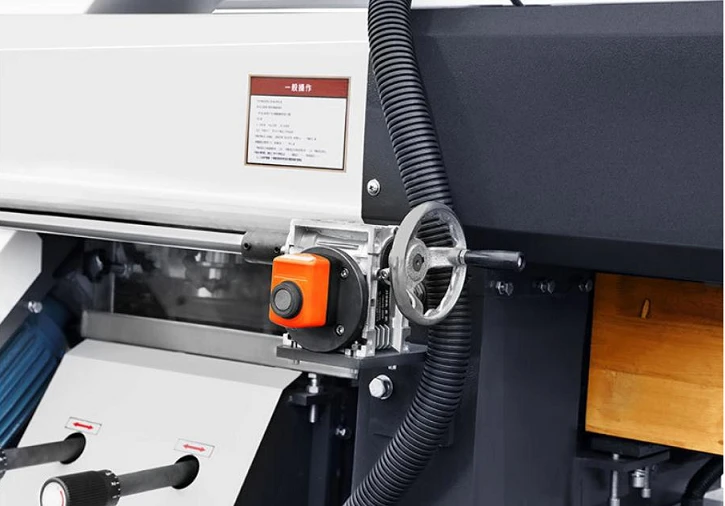

Adjustable Precision: Operators can easily adjust the feeding speed and depth of progress during the grinding process, allowing for customized handling of different stone materials.
Technical Specifications
| Parameter | Unit | XTJ-300-14C Specification |
|---|---|---|
| Appellation | - | XTJ-300-14C |
| Number of Machine Heads | pcs | 14 |
| Working Thickness Range | mm | 10 - 60 |
| Minimum Processing Size | mm | (10~8100) × 50 |
| Chamfer Grinding Amount | mm | 1 - 2 |
| Bottom Edge Grinding | mm | 1 - 3 |
| Feeding and Output Speed | mm/min | 1000 - 4000 |
| Power Supply | - | 380V / 50Hz / 3P |
| Total Power | kW | 56 |
| Weight | kg | 6000 |
| Overall Dimension | mm | 8100 × 1400 × 2000 |
Comprehensive After-Sales Service
We stand behind the quality of our granite edge polishing machines with an industry-leading support framework:
Global Warranty
Global Exhibition Presence
Experience our technology firsthand at major international stone and machinery exhibitions. We regularly showcase the XTJ-300-14C and other advanced fabrication solutions at premier events including:
Xiamen Stone Fair (China)
Marmomacc (Verona, Italy)
Coverings (USA)
Stone+tec Middle East (Dubai, UAE)
Visit our booth to witness live processing demonstrations and discuss custom configurations with our engineering team.
Global Distributor Recruitment
To better serve the expanding global stone processing market, we are actively seeking exclusive distributors and strategic partners worldwide.
Lucrative Partnership: Enjoy competitive pricing, generous profit margins, and tiered rebate incentives based on annual sales volume.
Marketing & Technical Backing: We provide localized marketing materials, exhibition co-sponsorship, and comprehensive technical training for your sales and service teams.
Protected Territories: Strict regional protection policies to ensure your market investment is secure and profitable.
Contact our international business department today to request our distributor prospectus and join a network of successful global partners.
