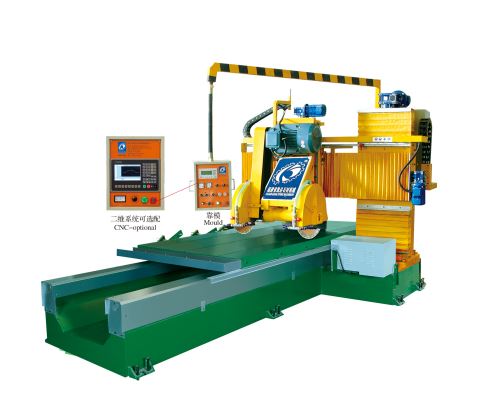

Double Blades CNC Profiling Machine/ Multi Stone Shape Cutter
It's automatically tracks model of curve(straight)line through the fiber optic probe,automatically profiles through diamond circular saws to cut stone with curve(straight)line and craft products,uses inverter to control un and down rising; left and right feeding,adjusts the speed according to the stone material.If choosing rotating worktable,the processing of arc-shapes lines can be done.The machine adopts PLC system,high degree of automation,high precision cutting ,using double blades designing,with high cutting efficiency,high stability,easy-operation to suit for lines,arc-shapes lines etc.
Appellation | Unit | DNFX-3000 |
Max.processing size(L*W*H) | mm | 3000*1300*600 |
Max.cutting thickness | mm | 180 |
Diameter of blade | mm | 350-600 |
Cutting speed | Mm/min | 0-7500 |
Main motor power | kw | 15 |
Water consumption | M³/h | 4 |
Overall dimensions(L*W*H) | mm | 5000*2200*2400 |
Approximate weight | kg | 4800 |
