Wire Saw Stone Trimmer
Products Description

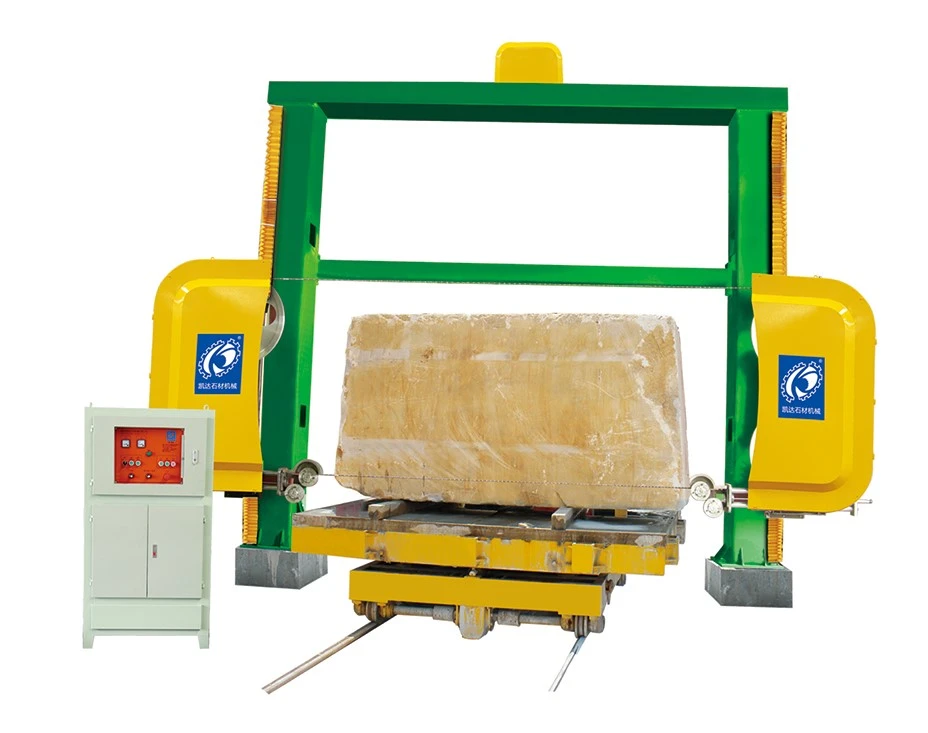

The Wire Saw Stone Trimmer features a robust design with a top beam, vertical columns, a rectangular box, a hydraulic take-up block, and two large flywheels. It includes a hydraulic tensioner for adjusting diamond wire tension and a main motor that controls the driven flywheel. The linear speed of the diamond wire, adjustable from 0-40m/s via an inverter, allows for cutting various granite and marble types.
To minimize diamond wire wear and ensure stability, the machine is fitted with four 300mm diameter guide wheels, protected by replaceable rubber rollers. These wheels rotate according to the cutting shape, powered by a stepper motor.
technical data
| Appellation | Unit | XBSJ-3500 |
| Max processing size(L*W*H) | mm | 3500*3500*2100 |
| Dimension of worktable | mm | 2500*2000 |
| Main motor | kw | 15 |
| Overall dimensions(L*W*H) | mm | 7300*9500*4700 |
| Wire cutting speed | m/s | 0-40 |
| Water consumption | m3/h | 6 |
| Gross weight | kg | 9500 |
This machine can adjust the cutting width based on stone size, reducing arch value during cutting, thanks to an electric system that moves the guide wheels closer. The 2000 x 3000 mm cutting table has a 50-ton capacity and offers manual 360º rotation controlled by a common motor. The table rotates when the control button is pressed and stops when released, requiring manual angle checking for precision.
Products feature
01
Rope Saw technology
This machine uses a unique rope saw design. This design not only reduces the damage and cracks of the stone but also ensures that the cutting surface is smooth and clean.
02
Precision trimming
The equipment is equipped with a high-precision control system, which can accurately control the motion path and cutting depth of the saw blade.
03
Efficient processing
Wire Saw Stone Trimmer has an efficient processing capacity, which can quickly complete the trimming work of a large number of stone squares.
04
Easy to operate
the equipment adopts a humanized design, and the operation interface is intuitive and easy to understand so that the operator can quickly get started even if there is no professional background.
Products details
our company
Support and Services
We provide technical support and service for our Wire Saw Stone Trimmer, so you can get the most out of your machine. Our team of highly experienced technicians will help you troubleshoot any problems you may experience and provide assistance if necessary.
Our technical support staff are available 24/7 to answer any queries you may have and provide assistance. We also offer a range of online resources, such as user guides and tutorials, to help you get the most out of your machine.
We also provide a range of maintenance and repair services for our machine, including regular servicing and repairs. Our team of experienced technicians will ensure that your machine is kept in optimum condition and running efficiently.
If you ever need any help with your machine, please don't hesitate to contact us. We are here to help you get the most out of your machine.
If you have other questions, please feel free to contact us.
