In the modern stone fabrication industry, achieving photographic-grade precision and intricate artistic detailing requires advanced non-contact processing technology. A Laser Stone Engraving Machine (also known as a Stone Laser Shadow Engraving Machine) utilizes a high-energy focused laser beam to etch vivid portraits, landscapes, and fine text directly onto hard stone surfaces. This guide explores how laser shadow engraving works, the materials it supports, and its high-value commercial applications.
1. What is a Laser Stone Shadow Engraving Machine?
A Laser Stone Engraving Machine is a specialized CNC opto-mechanical system designed to perform high-resolution image and shadow engraving on natural and synthetic stones. Unlike traditional mechanical milling, which relies on physical cutting tools found in a standard Stone Carving CNC Machine, laser engraving is a 100% non-contact process.
By converting digital grayscale images into precisely controlled laser pulses, the machine creates micro-dots of varying density on the polished surface. This produces a realistic 3D visual shadow effect (Shadow Engraving) with smooth tonal transitions, zero tool wear, and exceptional production speed.
2. Core Working Principle: How Does Laser Stone Engraving Work?
The fundamental mechanism of a stone laser engraver relies on photothermal and photochemical ablation. When the high-density laser beam hits the stone substrate, the localized thermal energy triggers two primary physical reactions:
① Instantaneous Surface VaporizationThe concentrated laser energy instantly heats the microscopic surface layer of the stone beyond its melting and vaporization point. As the surface material evaporates, it exposes the deeper, unpolished natural stone layer beneath, creating a stark visual contrast against the dark polished topcoat. |
② Photochemical & Physical ReactionIntense optical energy induces rapid chemical and physical changes on the material's epidermis. By selectively burning off and micro-fracturing targeted surface particles according to pixel brightness, the machine permanently reveals crisp patterns, floral motifs, calligraphic characters, or lifelike portraits. |
3. Applicable Materials: Beyond Natural Stone
While engineered primarily as a heavy-duty Stone Engraving Machine, the versatility of CO2 and fiber laser sources allows fabricators to process a wide spectrum of both lithic and non-metallic materials:
- Natural Hard Stones: Ideal for Black Granite, Marble, Bluestone, Basalt, Slate, and Cobblestone. Dark, fine-grained polished granite yields the highest contrast for photographic shadow engraving.
- Acrylic & Organic Glass (PMMA): Effortlessly engraves crisp lettering, illuminated signage, and intricate 2D/3D patterns on cast or extruded Plexiglass / Organic Glass with a frosted, high-visibility finish.
- Architectural & Craft Glass: Produces delicate surface frosting and decorative motifs on standard glass panels, mirrors, and crystal awards without structural cracking.
- Ceramic Tiles & Artificial Quartz: Widely used for custom interior wall tiles, porcelain plaques, and synthetic stone countertops.
| Material Category | Typical Examples | Engraving Effect & Contrast | Primary Output |
|---|---|---|---|
| Natural Stone | Shanxi Black Granite, Indian Black, White Marble | Ultra-High Contrast (White/Grey micro-dots on dark polish) | Portraits, Tombstones, Murals |
| Organic Glass | Acrylic Sheets, Plexiglass, PMMA Displays | Smooth Matte White Frosting | Commercial Signage, Trophies, Art |
| Silicate Glass & Ceramics | Tempered Glass, Glazed Ceramic Tiles, Slate | Delicate Micro-Etched Texture | Decorative Partitions, Custom Crafts |
4. Major Application Fields in the Stone Industry
Thanks to its ability to reproduce fine gradients up to 256 grayscale levels, the Laser Stone Engraving Machine has become indispensable across several high-margin sectors. For workshops that require sizing raw slabs prior to engraving, pairing this unit with a KAIDA Laser Stone Cutting Machine creates a complete, seamless production line.

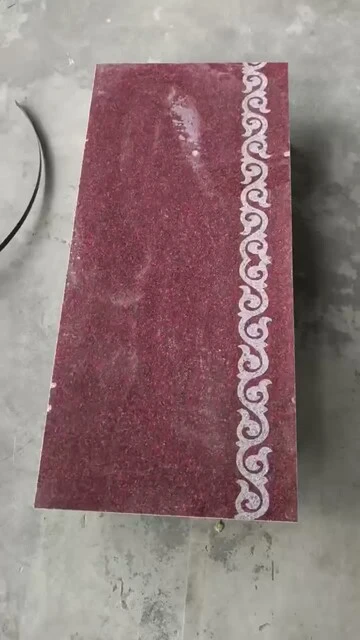

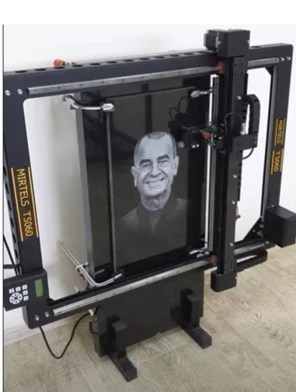

Tombstone & MemorialsWeather-resistant human portraits, epitaphs, and floral borders on black granite headstones. |
Large Murals & LandscapesSeamless splicing for monumental hotel lobbies, public squares, and scenic landscape walls. |
Religious Art & Stone CraftsIntricate Buddha shadow carvings, lifelike animal portraits, and customized souvenir plaques. |
Note: If your project requires deep 3D relief sculpting (such as 50mm–200mm deep dragon pillars or heavy architectural reliefs) in addition to surface shadow etching, we recommend exploring our heavy-duty Plane Stone Engraving Machine and Stone Engraving CNC Router series.

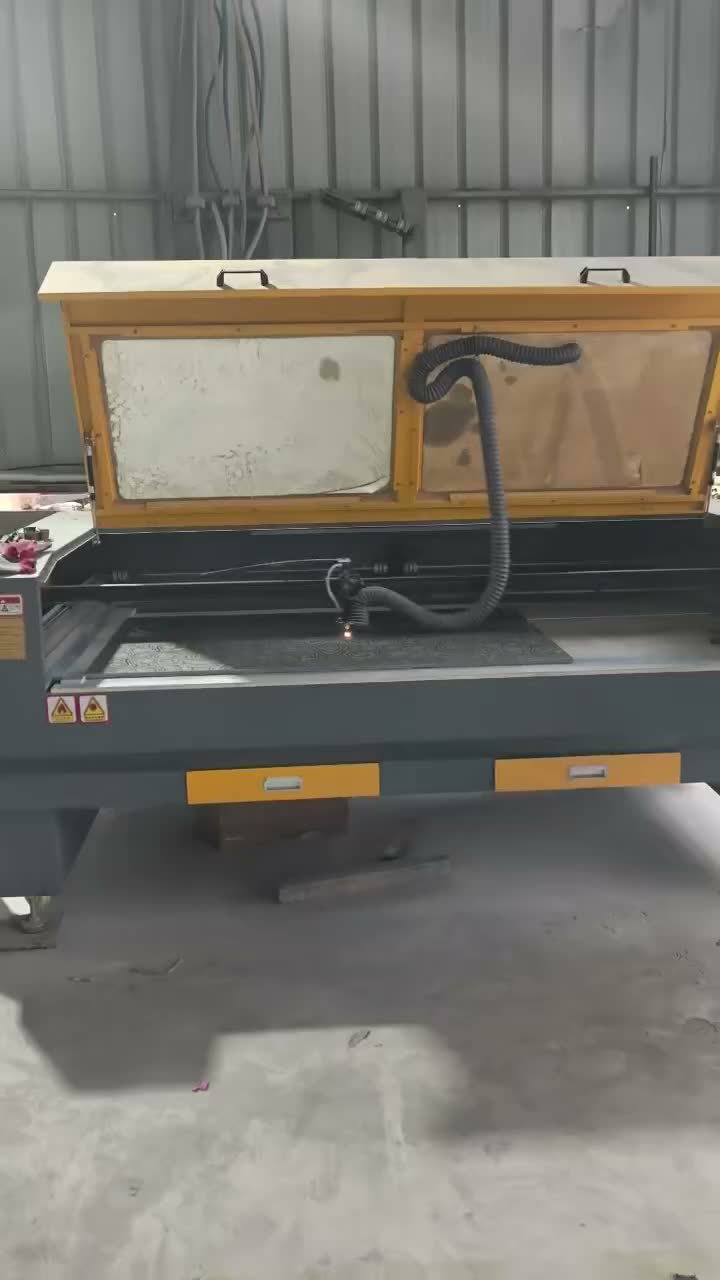

5. Live Demonstration: Laser Stone Engraving in Action
Watch how our high-speed laser head transforms a polished stone slab into a detailed masterpiece in minutes-with zero dust pollution and micron-level accuracy:
|
▲ Vertical Video: Real-time laser shadow engraving test |
Why Upgrade to KAIDA Laser Engraving Technology?Compared with traditional manual stippling or impact needle marking machines, the Best CNC Stone Carving & Laser solutions from KAIDA deliver unmatched ROI:
Pro Tip for Monument Makers: Applying gold leaf or specialized lithic paint after laser engraving further enhances contrast on lighter-colored stones! |
Ready to Elevate Your Stone Engraving Precision?
With over 20 years of manufacturing excellence, Fujian Kaida Stone Machinery Co., Ltd. provides customized laser and CNC Engraving Machine solutions tailored to your factory's slab sizes and production goals.
